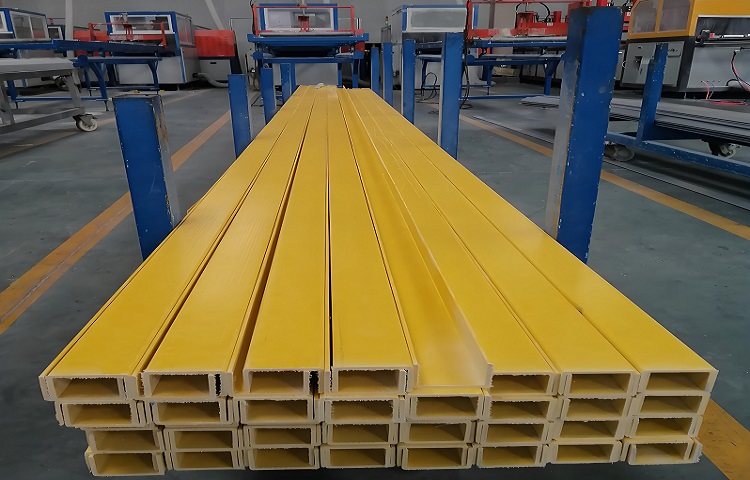

Fiberglass Channel (FRP Channel) is a composite profile made of fiberglass reinforced material and unsaturated polyester resin. It combines the advantages of lightweight, high strength, corrosion resistance, and insulation, making it widely used in corrosive environments or weight-sensitive applications in industries such as construction, chemical, power, and marine engineering.
Corrosion Resistance: Resists acid and alkaline solutions, making it suitable for environments like chemical plants and wastewater treatment.
High Strength: Weighs only 1/4 of steel but has tensile strength close to that of mild carbon steel.
Insulation: Non-conductive, making it ideal for electrical facilities.
Customizable: Can be tailored for cross-sectional sizes, colors, and mechanical properties.
| Size (mm) | Thickness (mm) | Weight (kg/m) |
|---|---|---|
| 50x30 | 4 | 0.8 |
| 50x20 | 3 | 0.5 |
| 50x45 | 5.5 | 1.3 |
| 60x35 | 4.4 | 1.1 |
| 60x50 | 5 | 1.4 |
| 70x30 | 4.5 | 1.1 |
| 70x58 | 4 | 1.6 |
| 88x35 | 5 | 1.4 |
| 74x35 | 10 | 2.5 |
| 80x40 | 8 | 2.21 |
| 80x40 | 9 | 2.4 |
| 98x80 | 8 | 3.7 |
| 100x50 | 5 | 1.9 |
| 100x50 | 8 | 2.8 |
| 115x65 | 7 | 3.1 |
| 120x50 | 4 | 1.7 |
| 127x80 | 8.5 | 4.2 |
| 150x50 | 6.5 | 3 |
| 160x80 | 10 | 5.9 |
| 180x50 | 8 | 4 |
| 200x100 | 10 | 7.3 |
| 150x100 | 5 | 3.2 |
Construction Structures: Roof supports, anti-corrosion platform frameworks.
Chemical Equipment: Pipe brackets, acid pickling tank frames.
Rail Transportation: Lightweight car parts.
Electrical Facilities: Insulated cable trays.
| Property | Fiberglass Channel | Steel Channel |
|---|---|---|
| Weight | Lightweight (1.6-2.0 g/cm³) | Heavy (7.8 g/cm³) |
| Corrosion Resistance | Excellent | Requires galvanizing/painting for protection |
| Maintenance Cost | Low (no maintenance required) | High (regular rust protection needed) |
| Thermal Conductivity | Low (good insulation) | High |
Fiberglass channels produced using the pultrusion process combine both efficiency and performance, making them ideal for large-scale standardized applications. The hand-layup method is better suited for customized, small-batch needs.
