Fiberglass Angle

What is Fiberglass Angle?

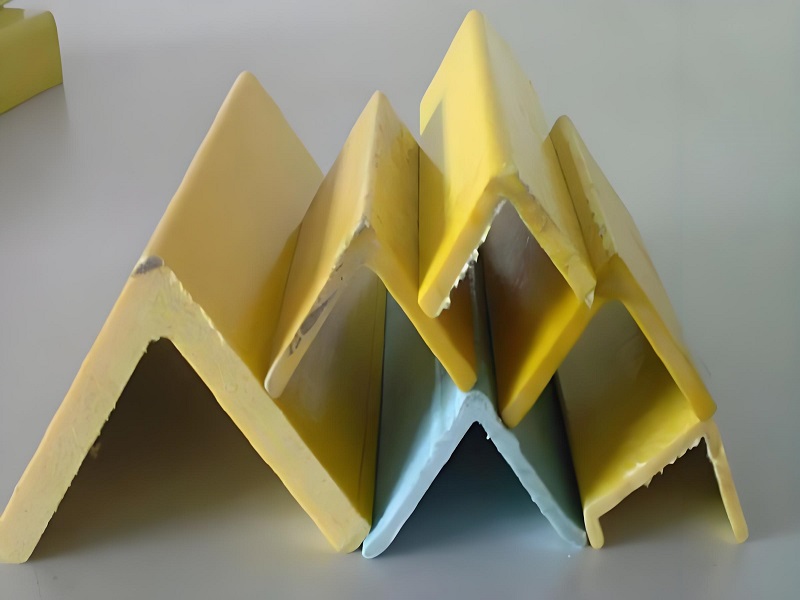

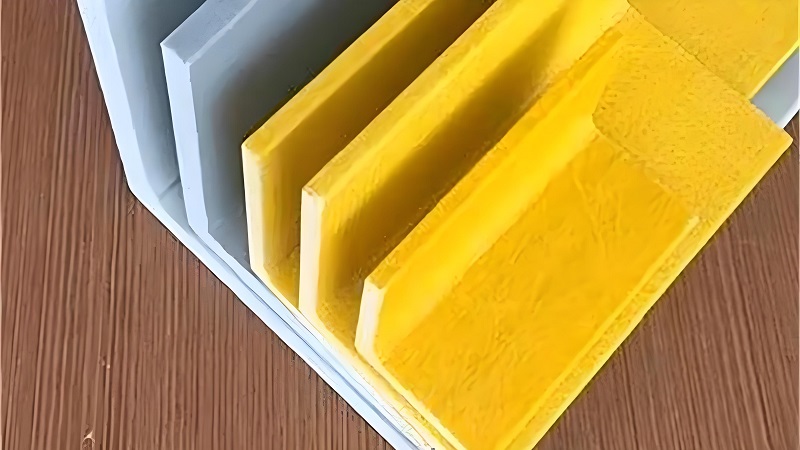

   Fiberglass angle, also referred to as FRP angle bar, is a structural profile made from premium resin and high-strength fiberglass reinforcement. Featuring two legs joined at a 90° angle, it offers an excellent combination of lightweight design, high load-bearing capacity, corrosion resistance, and electrical insulation.

    Compared with steel, aluminum, or wood, FRP angles provide superior corrosion resistance, enabling long-term performance in harsh industrial, coastal, or chemical environments without rusting or rotting. Its lightweight structure reduces transportation costs and speeds up installation, making it a preferred choice in construction, power, transportation, chemical plants, and marine projects.

    In the electrical industry, fiberglass angles are widely used for cable supports, transmission line brackets, and framing systems. Their non-conductive nature and durability ensure safe and maintenance-free operation.

    Henry Fiberglass is a professional fiberglass profiles manufacturer, supplying high-quality FRP angles in various sizes and colors. We also produce matching fiberglass structural shapes, such as fiberglass round tubes, fiberglass square tubes, I-beams, and more—ensuring complete project solutions from a single supplier.

Available Specifications:

1.Equal Leg Fiberglass Angles

• 25 × 25 mm

• 30 × 30 mm

• 40 × 40 mm

• 50 × 50 mm

• 60 × 60 mm

• 75 × 75 mm

• 100 × 100 mm

• 120 × 120 mm

• Custom sizes accepted

2.Unequal Leg Fiberglass Angles

• 2.5/1.6 Series (e.g., 25 × 16 × 3 mm)

• 3.2/2 Series (e.g., 32 × 20 × 3 mm)

Thickness Range

2.5 mm, 3 mm, 4 mm, 5 mm, or customized

Colors Available
Yellow, White, Gray, Blue, or customized

Advantages of FRP Angle Bar:

• Excellent Corrosion Resistance – Ideal for chemical, marine, and outdoor environments

• Lightweight & Strong – Easier handling, faster installation, reduced labor costs

• Non-Conductive & Safe – Superior electrical insulation for power and telecom applications

• High Load-Bearing Capacity – Maintains structural integrity under heavy loads

• Maintenance-Free – No rust, peeling, or repainting required

Typical Applications:

• Building and construction frameworks

• Chemical processing plants

• Automotive and motorcycle manufacturing

• Railway structures and maintenance

• Shipbuilding and offshore platforms

• Telecommunications towers and antenna supports

• Industrial workshops and factory framing

• Bridges, tunnels, and infrastructure projects

• Electrical and power transmission systems

• Wastewater treatment facilities
